Razor E300 6-Wire Throttle & Controller Bundle – HB2430-TYD6 (Versions 1–10, 12)

Description

This controller and throttle bundle can be used to replace the control module in versions 1-10 and 12 of the Razor E300 electric scooter.

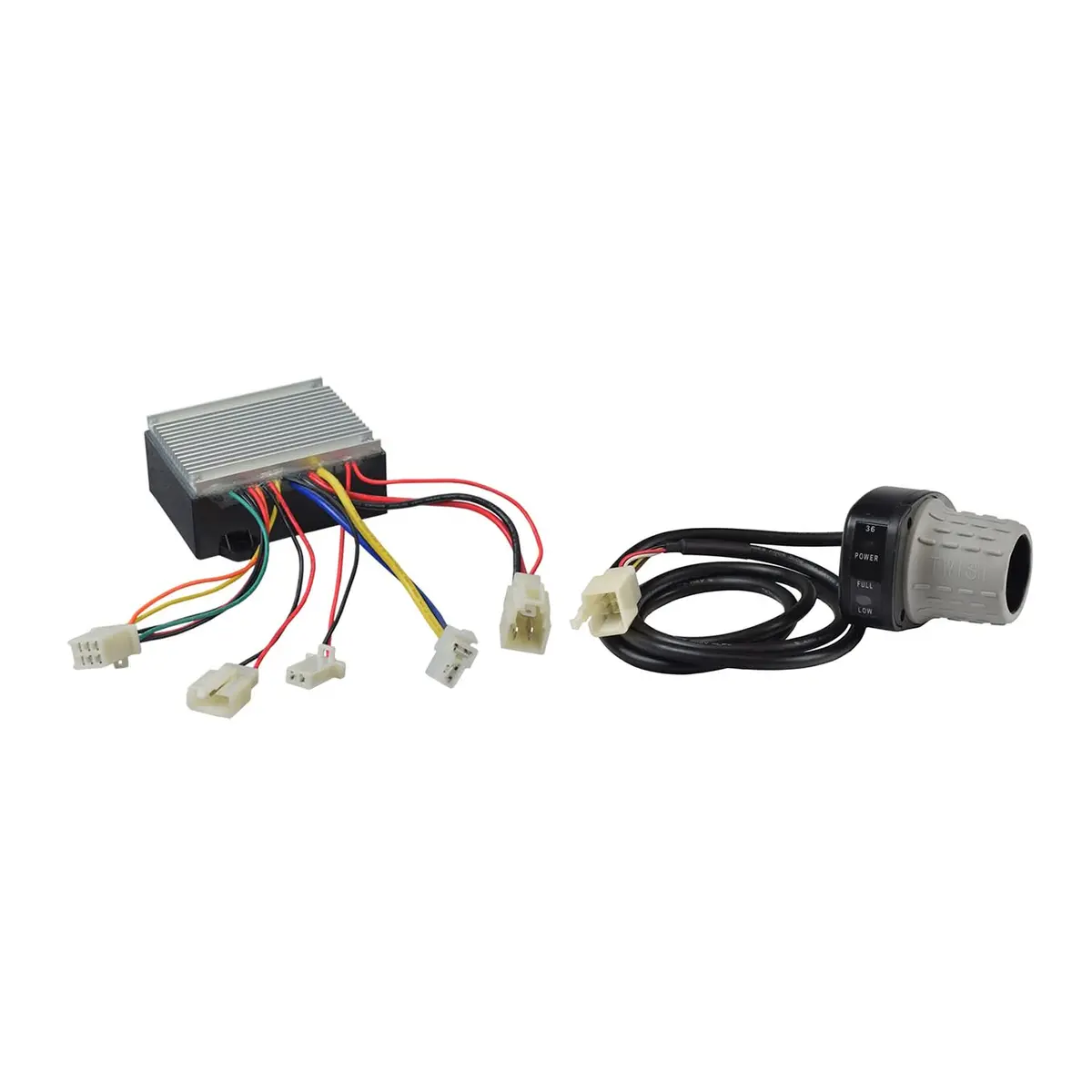

Included in this bundle is an upgraded HB2430-TYD6-FS control module and 6-wire variable speed twist grip throttle. This replaces the following controllers that were used in versions 1-10 and 12 of the Razor E300 that are now unfortunately discontinued and no longer available:

Versions 1-10 and 12 of the Razor E300 originally used either a 4-wire or 5-wire throttle. Because the control module included with this bundle requires a 6-wire throttle, the throttle and controller must be replaced together.

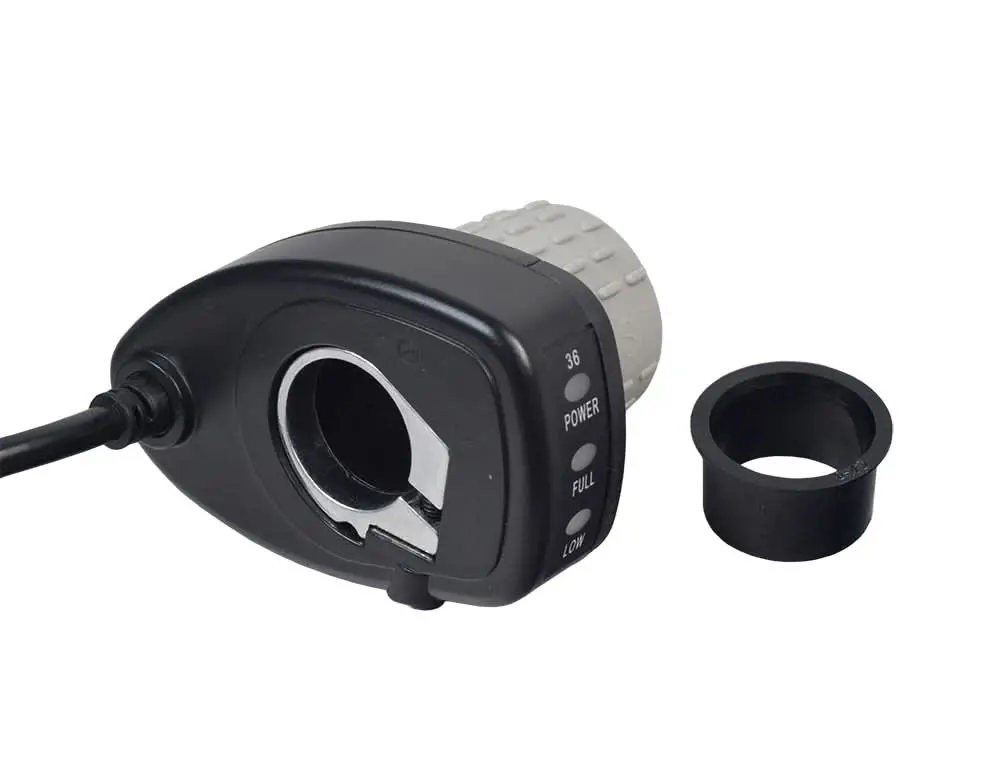

The throttle in this kit may be labeled for 36 volt batteries, but the throttle will still work with your 24 volt controller.
Wiring Diagrams:

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. “01” = Version 1, “02” = Version 2, etc.).

Razor: W25143069015, W13114501043
