Razor E200 Throttle & Controller Kit – HB2430-TYD6 (Versions 5–12)

Description

This control module and throttle bundle can be used to replace the controller in versions 5-12 of the Razor E200 electric scooter.

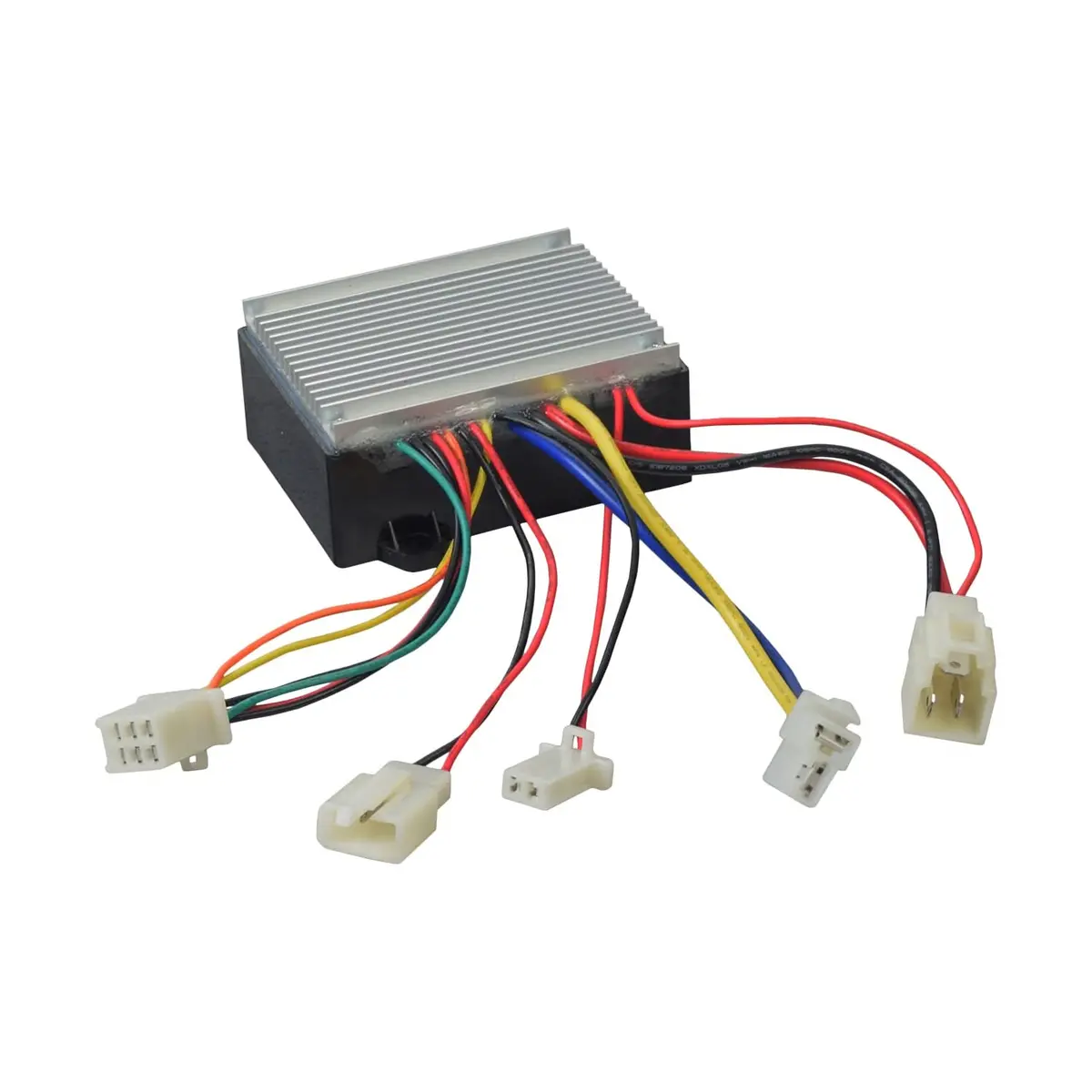

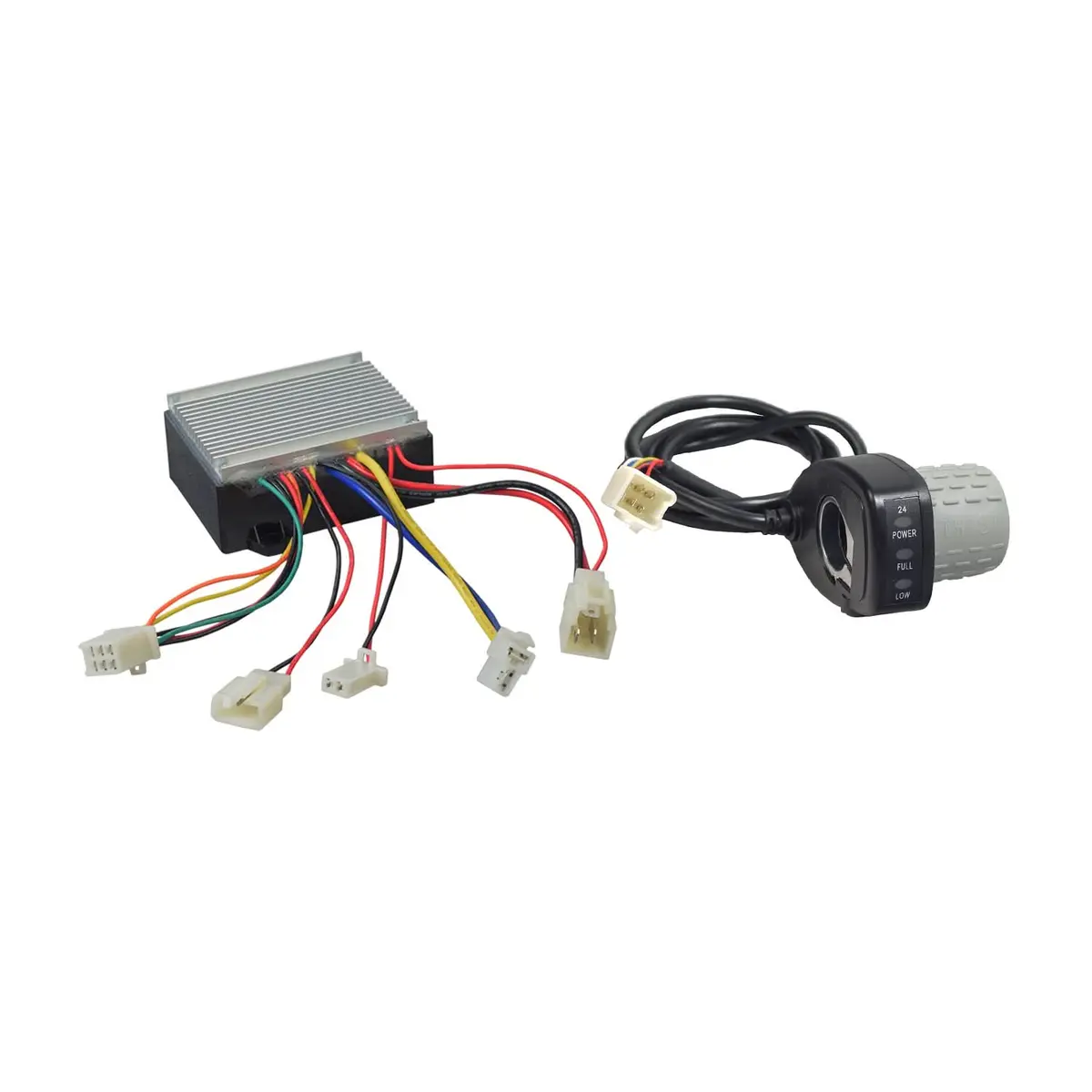

Included in this bundle is an upgraded HB2430-TYD6-FS controller and 6-wire variable speed twist grip throttle that are used on newer versions of many Razor products. This replaces the following control modules that were used in versions 5-12 of the Razor E200 that are now unfortunately discontinued and no longer available:

Versions 5-12 of the Razor E200 originally used either a 4-wire or 5-wire throttle. Because the control module included with this bundle requires a 6-wire throttle, the throttle and controller must be replaced together.
Wiring Diagrams:

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. “01” = Version 1, “02” = Version 2, etc.).

Razor: W25143069015, W25143069043
