Description

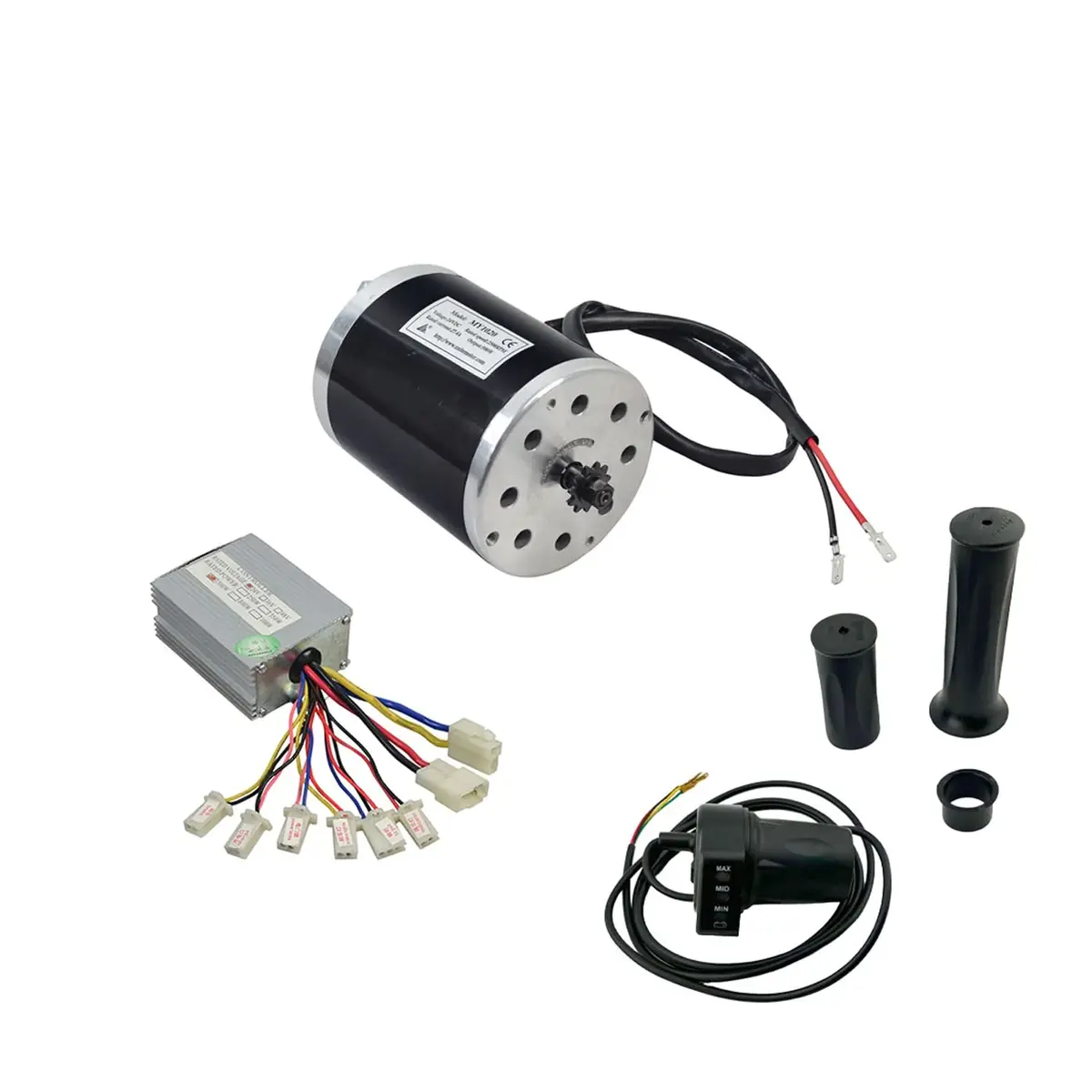

24 volt 500 watt / 500W motor, controller, & throttle conversion kit for electric scooters, bikes, ebikes, go-karts, and an endless list of custom projects..
C80-8742

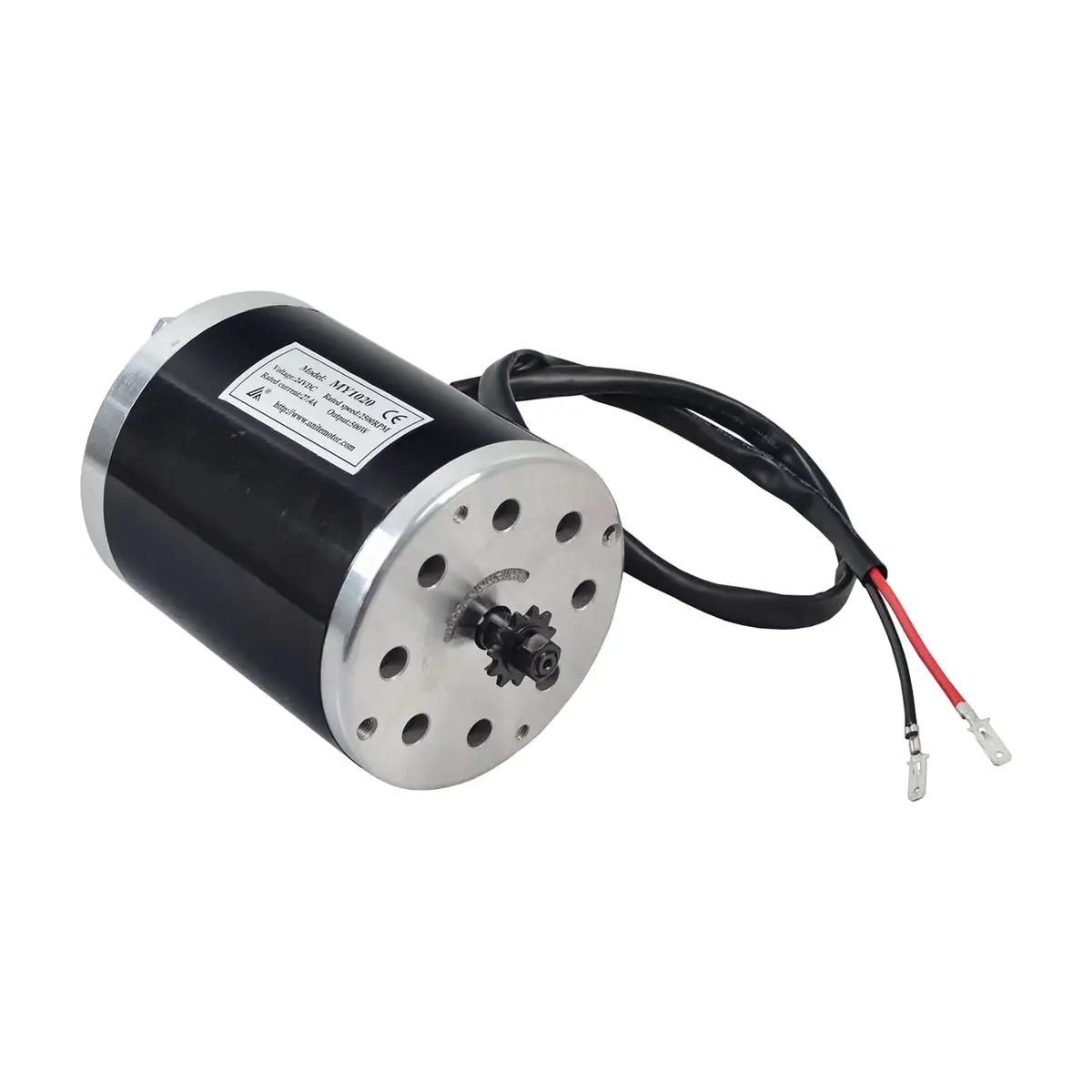

24 Volt 500 Watt Electric Motor with 11 Tooth #25 Chain Sprocket (MY1020)
24 volt 500 watt electric scooter and bike motor with 11 tooth #25 chain sprocket. Two mounting holes on each front and rear face, four mounting holes total. Mounting hole center to center distance is 3-3/4″.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.
T53-6119 (Full Grip Throttle)
Hand Throttle with 3 Wires
Electric scooter, pocket bike, and dirt bike 3 wire hand throttle. This is the most common type of throttle used on electric scooters.
T53-6109 (Half Grip Throttle)
Like the full throttle listed above, this three-wire hand throttle is typically used in a variety of electric scooter, pocket bike, and dirt bike applications. For situations where a half grip throttle would be more appropriate, we recommend this version of the kit.
Z09-1688
24 Volt 500 Watt Universal Speed & Voltage Controller
Wiring Details:
Red to Red
Black to Black (or Yellow)
Green (or Blue) to Green (or Blue or White)
Note: All scooter controllers require a switch, (joined to the “Lock” connector on the controller wires), in order to complete the electrical circuit.
