ZK2430D-FS Throttle and Control Module Kit for Razor E200 (Firmware Versions 13–23)

Description

This 4-wire throttle and controller kit replaces the now discontinued Razor OEM ZK2430HB-FS, CT-201C-3, or HB2430TYD-FS control modules. This kit is for versions 13 through 23 of the Razor E200 scooter.

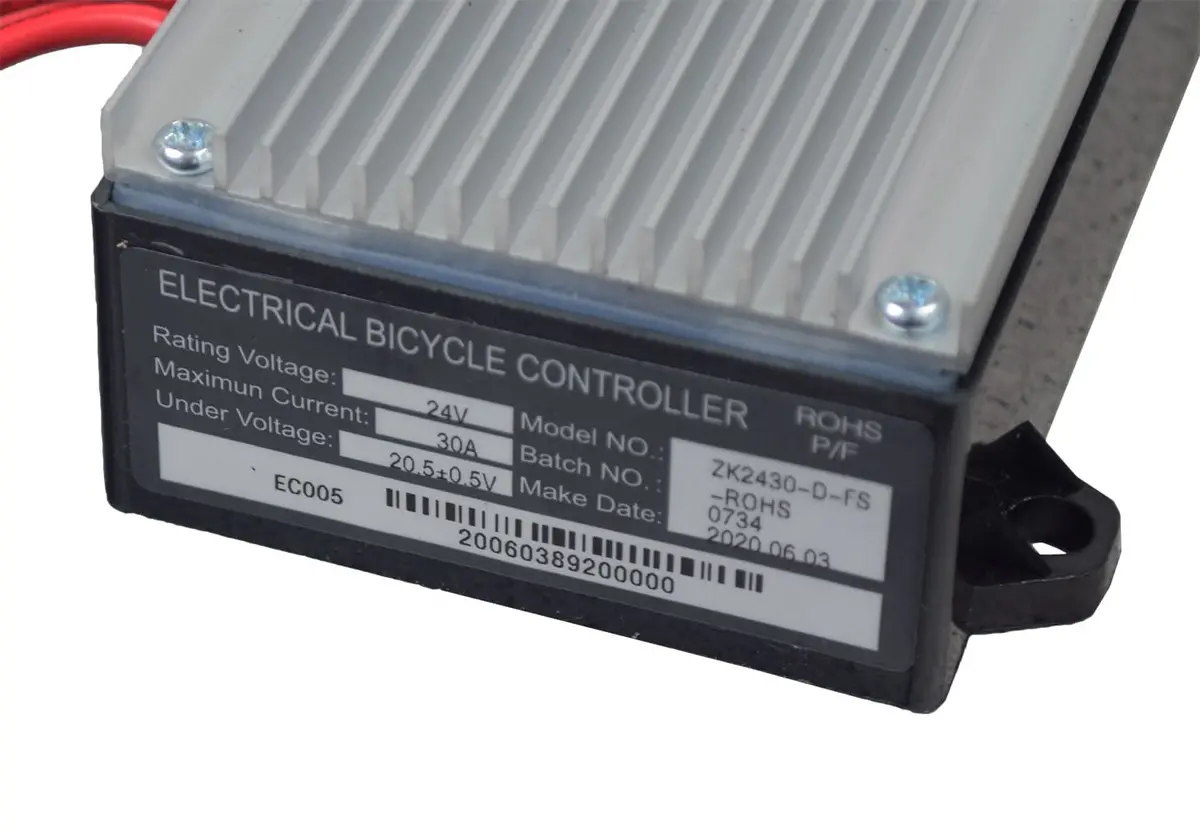

The control module included in this kit is Monster Scooter Parts part number Z09-1682, described as a ZK2430D-ROHS control module with seven connectors, and the throttle connector has four wires.
The throttle included in this kit is Monster Scooter Parts part number T53-6101, described as a Razor single-speed 4-wire twist grip throttle with 28″ wires.
The original wiring diagrams for this part can be found at the following links:

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. “01” = Version 1, “02” = Version 2, etc.).
Razor: W13112430184
