ZK2400-DP-LD / ZK2400-DP-FS 4-Wire Throttle Control Module for Razor E100/E125 (v10+), E150, E175, and Trikke E2 Scooters

Description

ZK2400-DP control module for the Razor E100/E125 (versions 10 and up), E150 (all versions), E175 (all versions), and Trikke E2 (all versions) electric scooters.

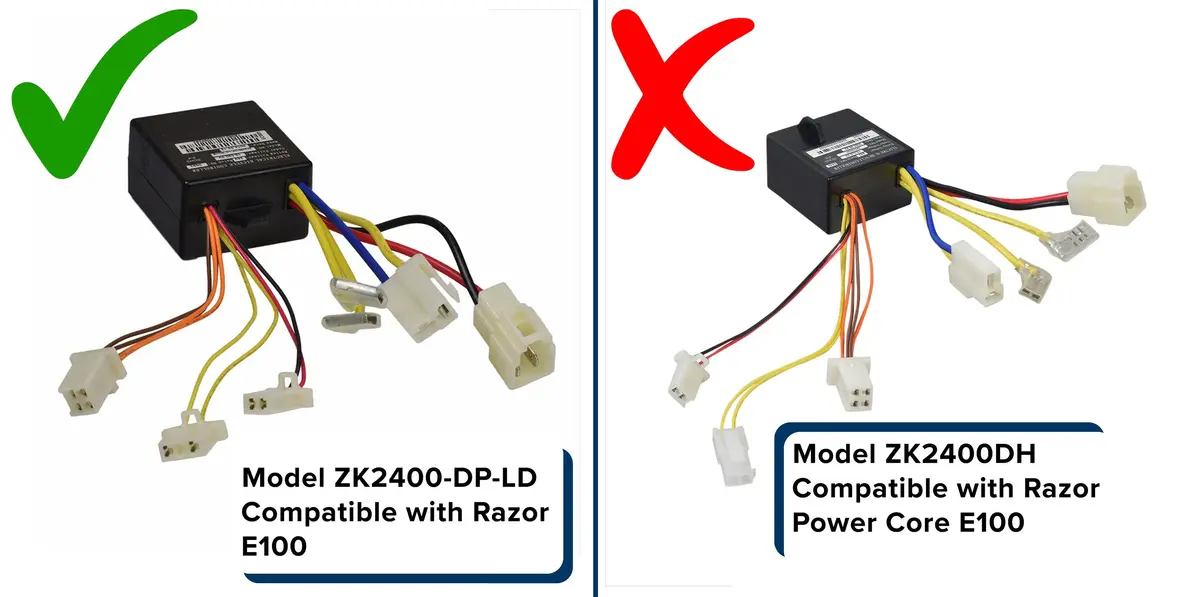

This controller replaces those with model numbers of ZK2400-DP-LD-ROHS or ZK2400-DP-FS-ROHS. The “LD” or “FS” designation within the model number only indicates the factory in which it was made.
The wiring diagrams for this part can be found at the following links:

Razor E100 Wiring Diagram (Versions 10-14)

Razor E100 Wiring Diagram (Version 15)

Razor E100 Wiring Diagram (Version 16)

Razor E100 Wiring Diagram (Versions 17-21)

Razor E100 Wiring Diagram (Versions 22+)

Razor E150 Wiring Diagram (Versions 1-5)

Razor E150 Wiring Diagram (Versions 6-10)

Razor E150 Wiring Diagram (Versions 11+)

Razor E175 Wiring Diagram (Versions 19-21)

Razor E175 Wiring Diagram (Versions 22+)

Razor Trikke E2 Wiring Diagram (All Versions)

Note: Due to the low wattage power of the motor, the scooter will require a kick start before twisting the throttle to properly engage the motor.
Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. “01” = Version 1, “02” = Version 2, etc.).
Razor: W13111612015
