HB2430TYD-FS 5-Wire Throttle Control Module for Razor Pocket Rocket (Version 6)

Description

Razor CT-201C6-3 or HB2430TYD-FS control module for Razor Pocket Rocket electric scooters, version 6 only.

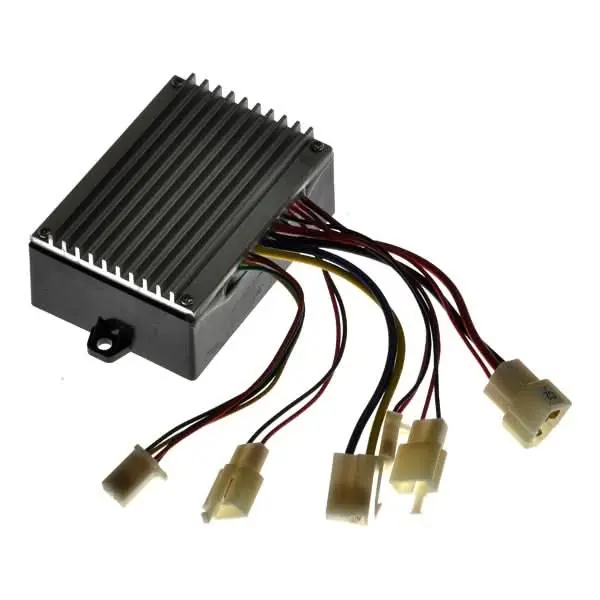

This controller may come with model number CT-201C6-3 or HB2430TYD-FS. Model numbers vary based on the factory that produced the controller, and are interchangeable. Depending on the controller model number, the case may be silver or black. Controller has five sets of wires with harnesses (14 wires total).
The wiring diagram for this part can be found at the following link:

Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. “01” = Version 1, “02” = Version 2, etc.).
Razor: W13112000160
