Description

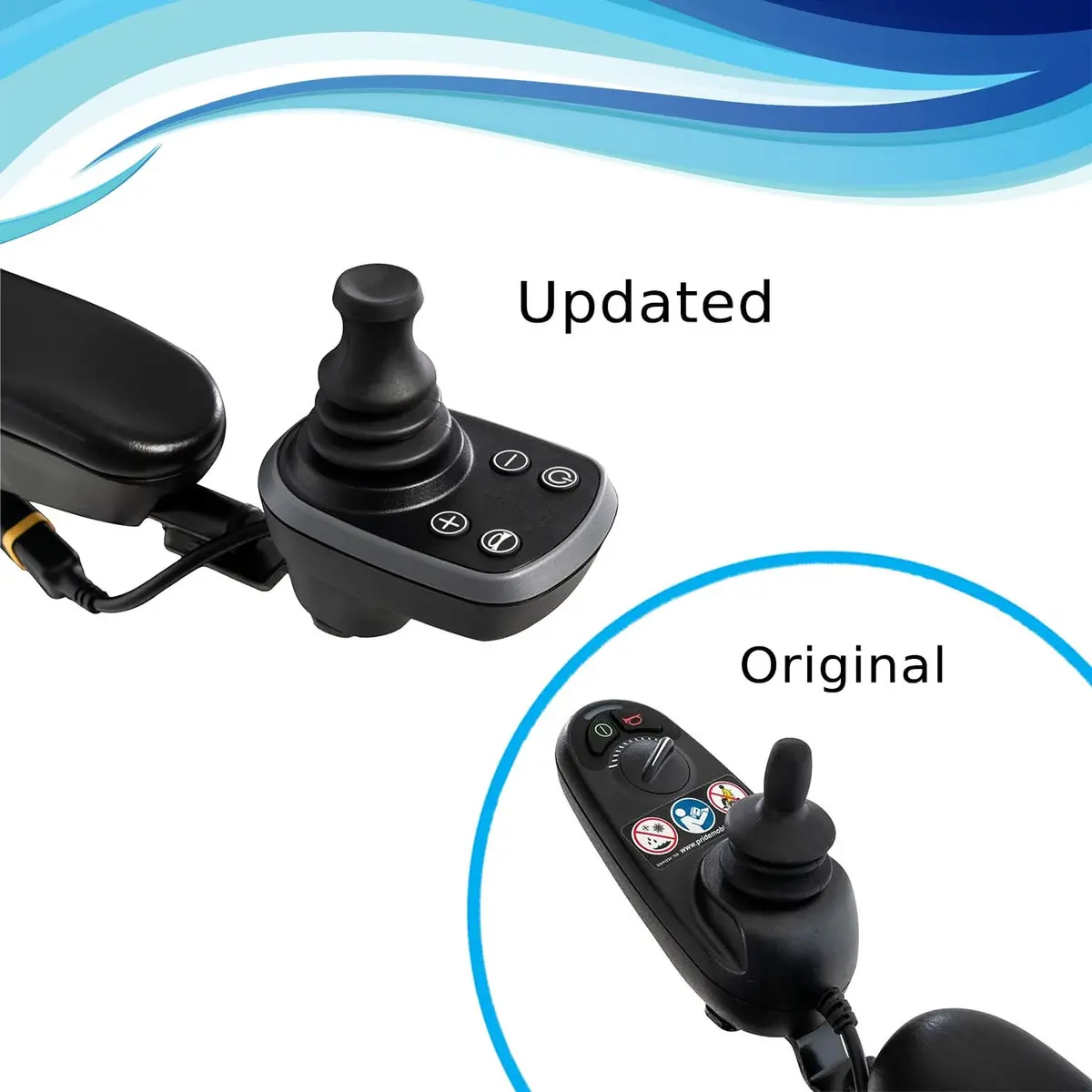

Please Note: Due to common unavailability of this 2 Key GC2/GC3 Joystick Remote (CTLDC1574), Pride Mobility offers the following 4 Key GC3 Joystick Remote (KIT2301228) as a recommended replacement:
Pride Mobility Replacement for the 2 Key GC2/GC3 Joystick Remote
2 Key GC2/GC3 joystick remote with speed dial designed for use with Jazzy and Jet power chairs from Pride Mobility. Please refer to the Compatibility tab for a complete list of compatible models, as joystick remote connectors may vary between different production runs.
Unlike some joystick controllers, the GC2/GC3 joystick remote functions in conjunction with a separate control module.
Models with a 3-prong connector use serial number D50901 (CTLDC1461), while 4-prong versions use serial number D51157 (CTLDC1574). Please note that the 3-prong version has been discontinued by the manufacturer and is no longer available.
Certain models of Jazzy Select, Select 6, and Select 6 Ultra power chairs use a GC joystick remote with a 3-prong connector which connects to the following controller:
40 Amp Controller for the Jazzy Select, Select 6, and Select 6 Ultra Power Chairs
Other Jazzy Select and Select GT models use a GC joystick remote with a 4-prong connector which connects to this controller:
40 Amp Controller for the Jazzy Select and Select GT
Control Panel Features:
- On/Off Button – This button turns the GC on and off. Do not use this button to stop the wheelchair, except in an emergency.
- TruCharge Battery Gauge – This is a 5 segment display which indicates if the GC is switched on and gives the state of charge of the battery. Additionally, any faults in the wheelchair’s electrical system are indicated by this display. Refer to the wheelchair’s documentation for more details.
- Speed Dial – This dial adjusts the speed of the wheelchair.
- Horn Button – This button operates the wheelchair’s horn.
Pride Mobility: CTLDC1574
PG Drives Technology: D51157
