Currie eZip & iZip Electric Bikes AC-Series 24V 35A 3-Pin Controller

Description

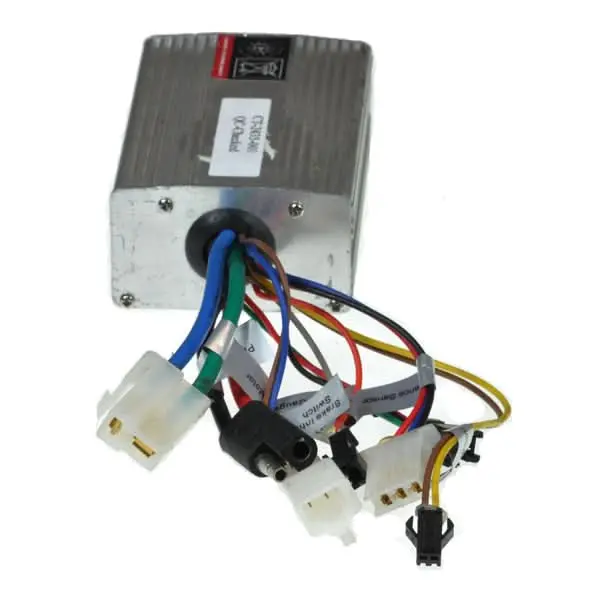

Here is the correct OEM Currie 24 volt 35 amp 3-pin controller for eZip and IZIP electric bicycles with AC serial numbers.
The 24 Volt 35 Amp 3-pin voltage controller is an exclusive Currie Technologies design. The controller is fully water-proof.
7 Connectors:
Motor: White connector with two wires – blue, green
Battery (Power): Black connector with two wires – black, red
Throttle (HAL Sensor): Black connector with three wires – green, black, red
Throttle (PAS/TAG): Black connector with two wires – brown, yellow
Throttle (Battery Gauge): Black connector with two wires – gray, orange
Cadence Sensor: White connector with three wires – black, blue, red
Brake Inhibit Switch: White connector with two wires – blue, brown
Currie Technologies: CT-2435-001
