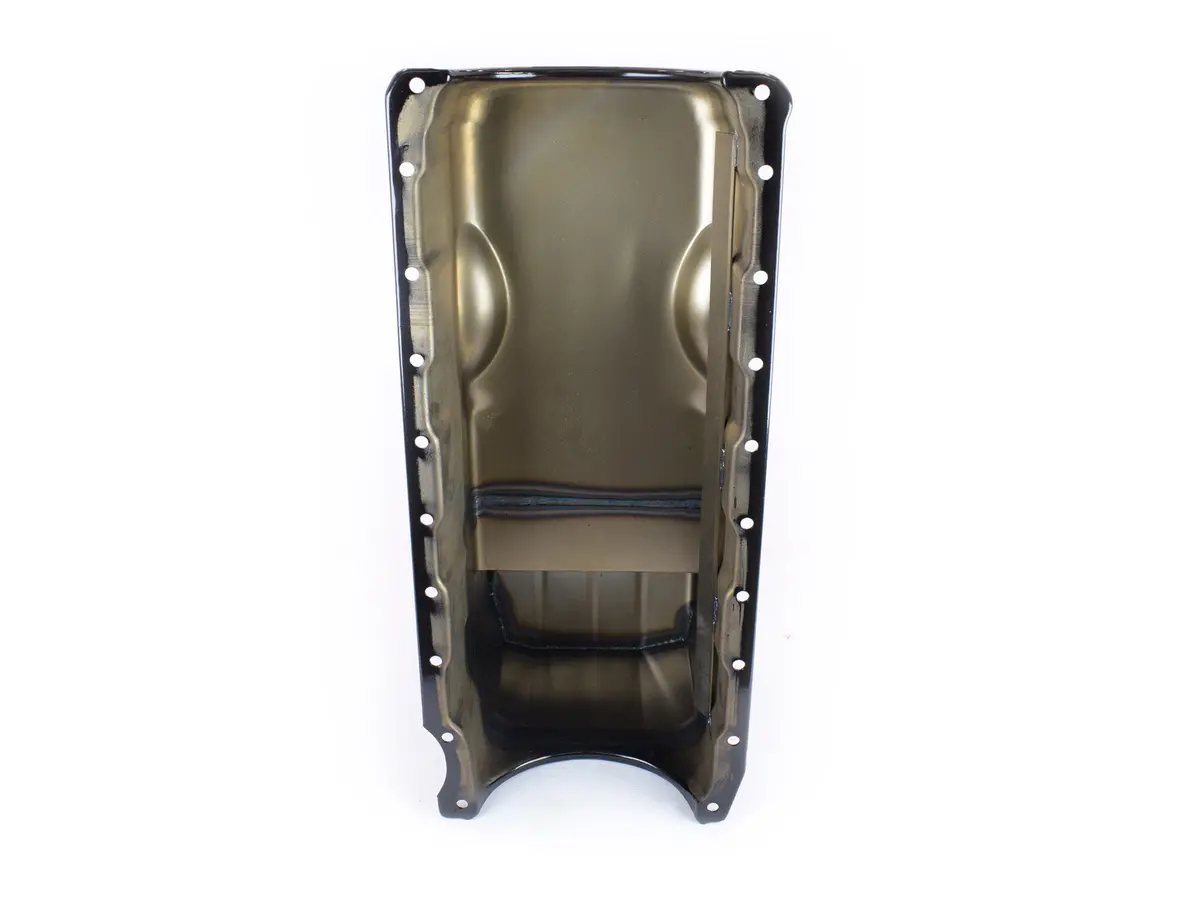

Canton 16-330T Oil Pan Big Block Chevy Mark 5 Gen 6 Deep Sump 4X4 Truck Pan

Description

This oil pan is designed for Mark 5-6 Big Block Chevys in 67-01 Chevy 4×4 chassis. It’s 10? deep sump design provides superior oil control and an 8 quart system capacity. This pan requires our 16-331 pick up.

• 8 qt System Capacity
• Crank Scraper
• Slosh Baffle
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug
• Gloss Black Powder Coat Finish

Attributes:

• Brand Name: Canton
• GTIN: 00887753714121
• Baffled: Yes
• Capacity: 8 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Feature 1: 8 qt System Capacity
• Feature 2: Crank Scraper
• Feature 3: Slosh Baffle
• Feature 4: Provision For Our Pan Mounted Dipstick
• Feature 5: Magnetic Drain Plug
• Feature 6: Gloss Black Powder Coat Finish
• Finish: Black Gloss Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: No
• Material: 14 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 16-331 – BBC Pickup for M77/M77HV Oil Pumps
• Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
• Stoke: 4.5 inches
• Windage Tray Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 13.25 x 10.25 inches
• Weight: 13.5 POUNDS

PDF:
