4-Wire Variable-Speed Thumb Throttle for Razor E300 (v1)

Description

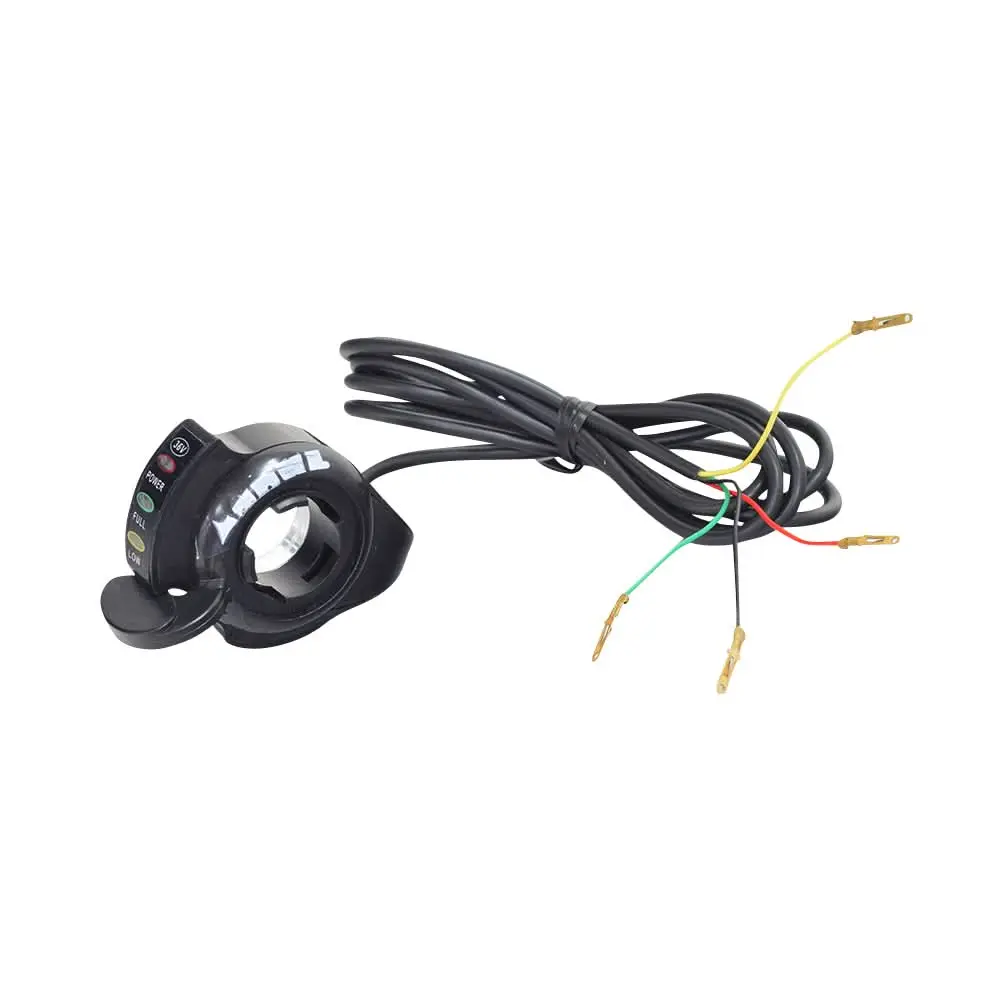

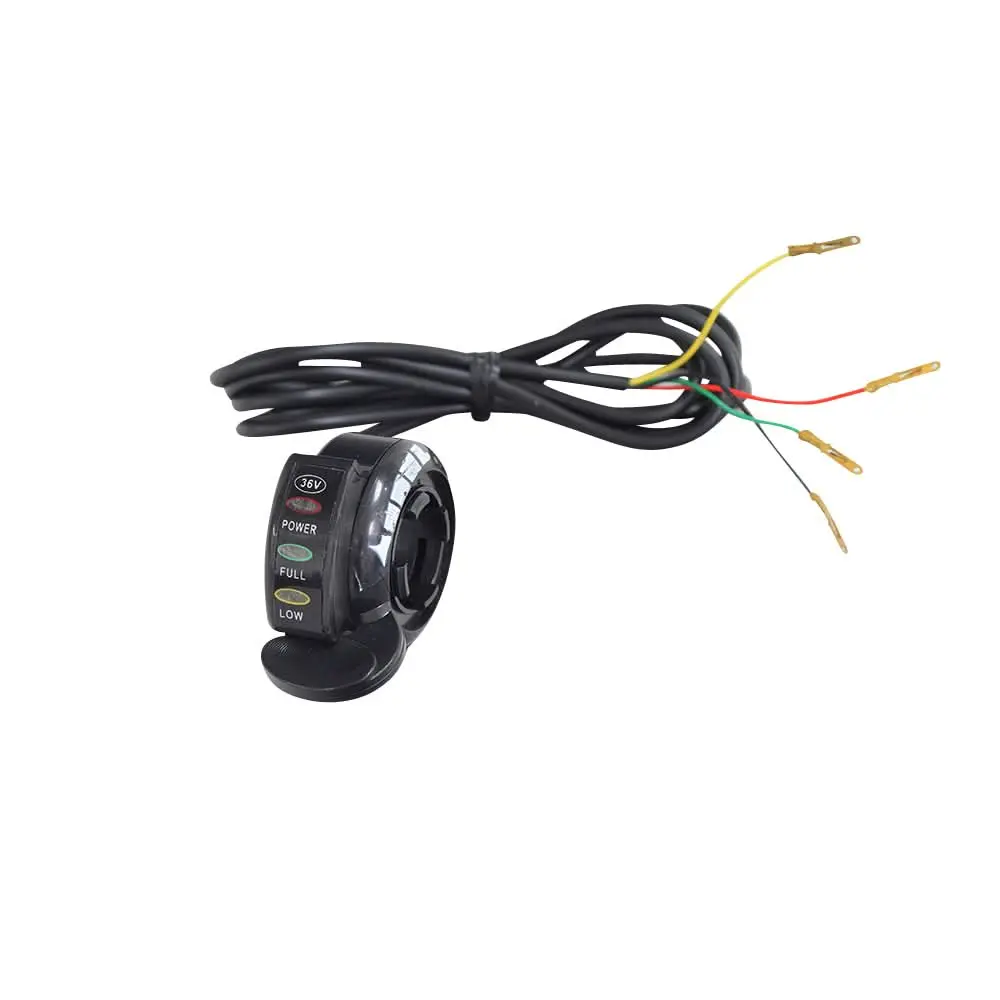

Razor variable speed 4-wire thumb throttle for the Razor E300 (version 1) electric scooters.
Prior to ordering, make sure your controller’s four throttle wires are red, black, green, and yellow. Also measure your controller’s four wire throttle connector and verify you have 4.5 – 6.0 volts between the red and black wire. If you do not read this level of voltage this throttle is not compatible or your controller needs to be replaced.
Throttle Wire Color to Controller Wire Color (Description)

The wiring diagram for this part can be found at the following link:

Note: Scooter versions can be determined by locating the bar code ID on the scooter. The 7th and 8th digit in the series will tell you the version of your product: 01=version 1; 02=version 2; 09=version 9, and so on. Please be sure to identify your product version before ordering.

Razor: W13112099043-M
