24V 2A XLR Charger for Pride Star SC45 (S31055)

Description

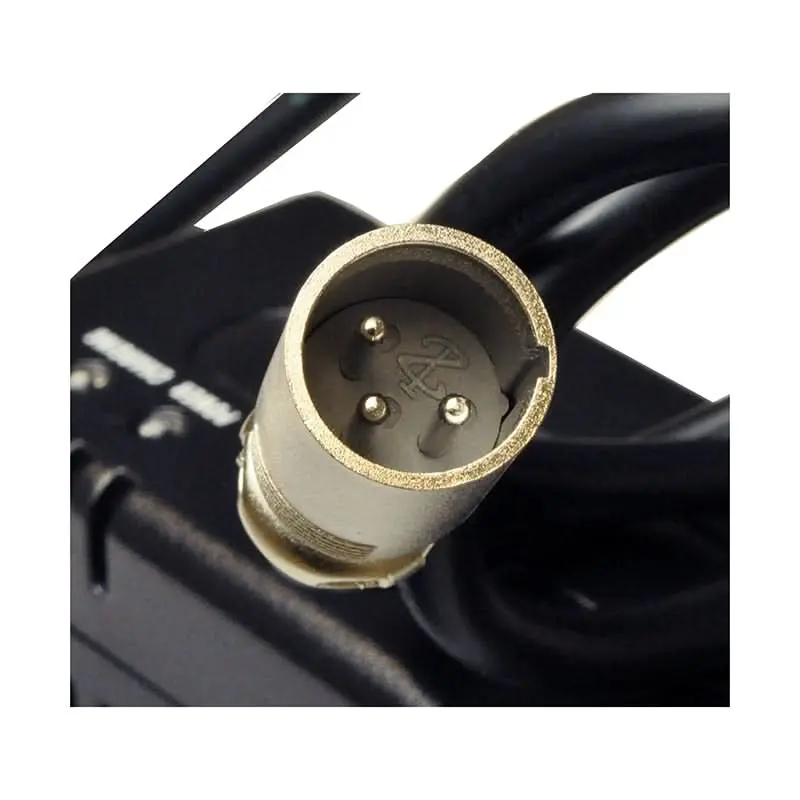

Our premium quality 24 volt 2.0 amp XLR connector battery charger for the Pride Star (SC45) is suitable for use on sealed lead acid (SLA) batteries with a capacity size of 7 Ah or larger. Typical applications include electric scooters, mobility scooters, and power chairs equipped with an off-board charging female XLR socket. Comes with 3-prong adapter plug.
Automatic shut off when battery charging is complete. Charging time varies greatly with level of battery depletion.

Short Circuit Protection – Prevents damage caused when operating in a short circuit condition for an indefinite period of time. The charger is “self-recovering” when the fault condition is removed.

Reverse Polarity Protection – Prevents damage when positive and negative polarities are connected in reverse.

Fully Automatic Operation – Safely charges and maintains a full charge. the final stage of charging is the float mode and the battery may remain connected indefinitely. In this mode, the charger maintains fully charged condition.

Designed to Prevent Over Charging – Automatically switches to Float Mode.

Complete 3-Stage Process – Bulk Charge, Absorption, Maintenance/Float.

Low Voltage Protection – When the battery voltage is below a preset value, the charger will not start charging.

LED Display

Light Weight – Switch mode chargers are much lighter than linear chargers.

LED lights indicate battery charge level as follows:
A. POWER LED (Clear Lens – Red Color):

Power On – LED On

No Power – LED Off

B. CHARGING/FAULTS LED – (Clear Lens – Red / Green Color):

Power OnNo Battery/Full Charge (20 Hrs) – Both LED’s Off

Bulk /Absorption Charge – Red LED On – Green LED Off

Float Charge – Red LED Off – Green LED Blinking

Maintenance Charge – Red LED Off – Green LED On

Warranty Information:
Monster Scooter Parts is proud to announce a full 1 year warranty on this battery charger, covering defects in material and workmanship for a period of 1 year (12 months) from the date of receipt. Our full warranty policy can be viewed at the following link:
Monster Scooter Parts Warranty Policy
PLEASE NOTE: The Low Voltage Protection feature on this battery charger will not allow the charger to activate unless it is connected to a battery pack that has a minimum voltage of 16 volts. Battery packs with voltages below that level of charge cannot be recovered or recharged. This is a safety feature to prevent overheating in the event of a faulty battery. This battery charger will not output any voltage to the XLR connector until connected to a battery pack meeting this minimum voltage requirement.
Universal Power Group (UPG): 24BC2000T-4
